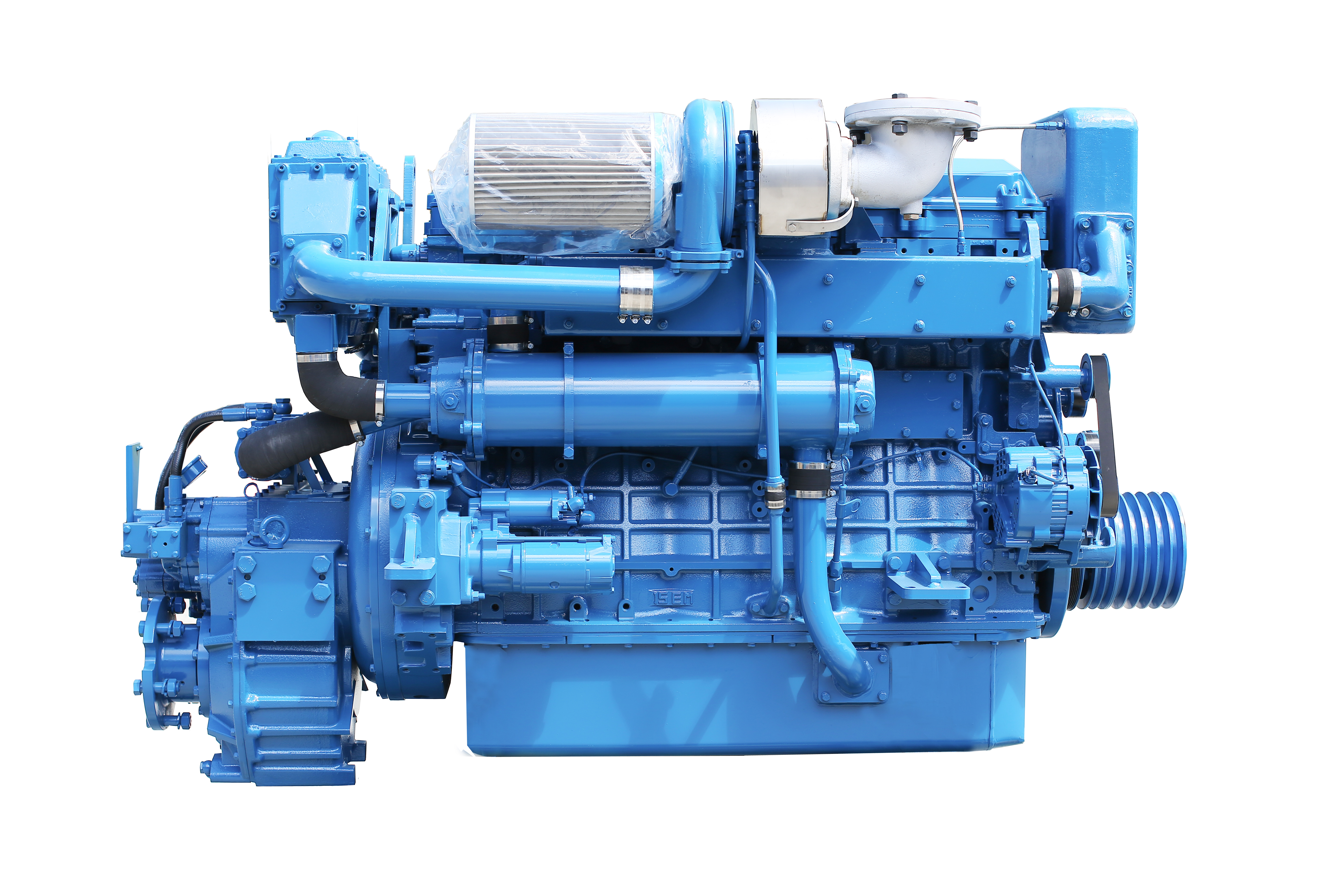

Small ship engine
M6D36TI2
M6D36TI2
550PS / 2000RPM
550
PS
2000
RPM
L6
Cylinders
12,742
cc
Advantages
- High efficiency marine engine
- Economic fuel consumption
- Long durability & high reliability
- Easy and low cost maintenance
- Installed high performance hydraulic clutch
- Minimized noise and vibration
Technology & Certification
- Approved the Certificate by KST
PRODUCT SPECIFICATION
Product Specification
| Model | M6D36TI2 |
|---|---|
| Engine type | 4cycle, vertical, fresh water cooled diesel engine |
| Out put(PS/RPM) | 550 / 2000 |
| No.of.cyl. | L6 |
| Bore×stroke(mm) | 130×160 |
| Volume(cc) | 12,742 |
| Aspiration | TCI |
| Aspiration | DI |
| Compression ratio | 17.2 |
| Fuel | Diesel light oil, cetane Number 45 or Higher |
| Lub. Oil | API |
| Cooling system | Heat exchanger type forced circulation by centrifugal pump |
| Starting system | DC 24V Electric Starting |
| Fuel inj.pump | EUI type |
| Dry weight(kg) | 1,275 |
| Ratio(STD) | 1.50/1.97/2.44/2.93/3.40 |
