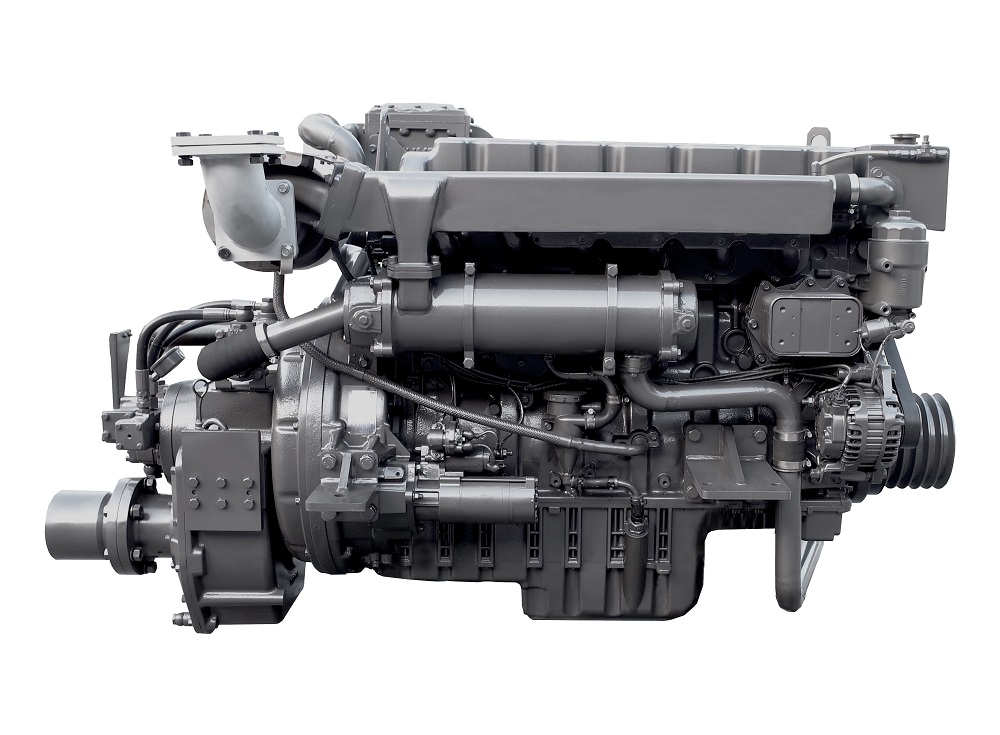

Small ship engine
M6D21TI
M6D21TI
270PS / 2200RPM
270
PS
2200
RPM
L6
Cylinders
5, 899
cc
Advantages
- High efficiency marine engine
- Economic fuel consumption
- Long durability & high reliability
- Easy and low cost maintenance
- Installed high performance hydraulic clutch
- Minimized noise and vibration
Technology & Certification
- Approved the Certificate by KST
PRODUCT SPECIFICATION
Product Specification
| Model | M6D21TI |
|---|---|
| Engine type | 4cycle, vertical, fresh water cooled diesel engine |
| Out put(PS/RPM) | 270 / 2200 |
| No.of.cyl. | L6 |
| Bore×stroke(mm) | 103x118 |
| Volume(cc) | 5, 899 |
| Aspiration | TCI |
| Aspiration | DI |
| Compression ratio | 17 |
| Fuel | Diesel light oil, cetane Number 45 or Higher |
| Lub. Oil | API CI-4 |
| Cooling system | Heat exchanger type forced circulation by centrifugal pump |
| Starting system | DC 24V Electric Starting |
| Fuel inj.pump | EUI type |
| Dry weight(kg) | 620 |
| Ratio(STD) | 2.09/2.42/2.82/3.19/3.81 |
