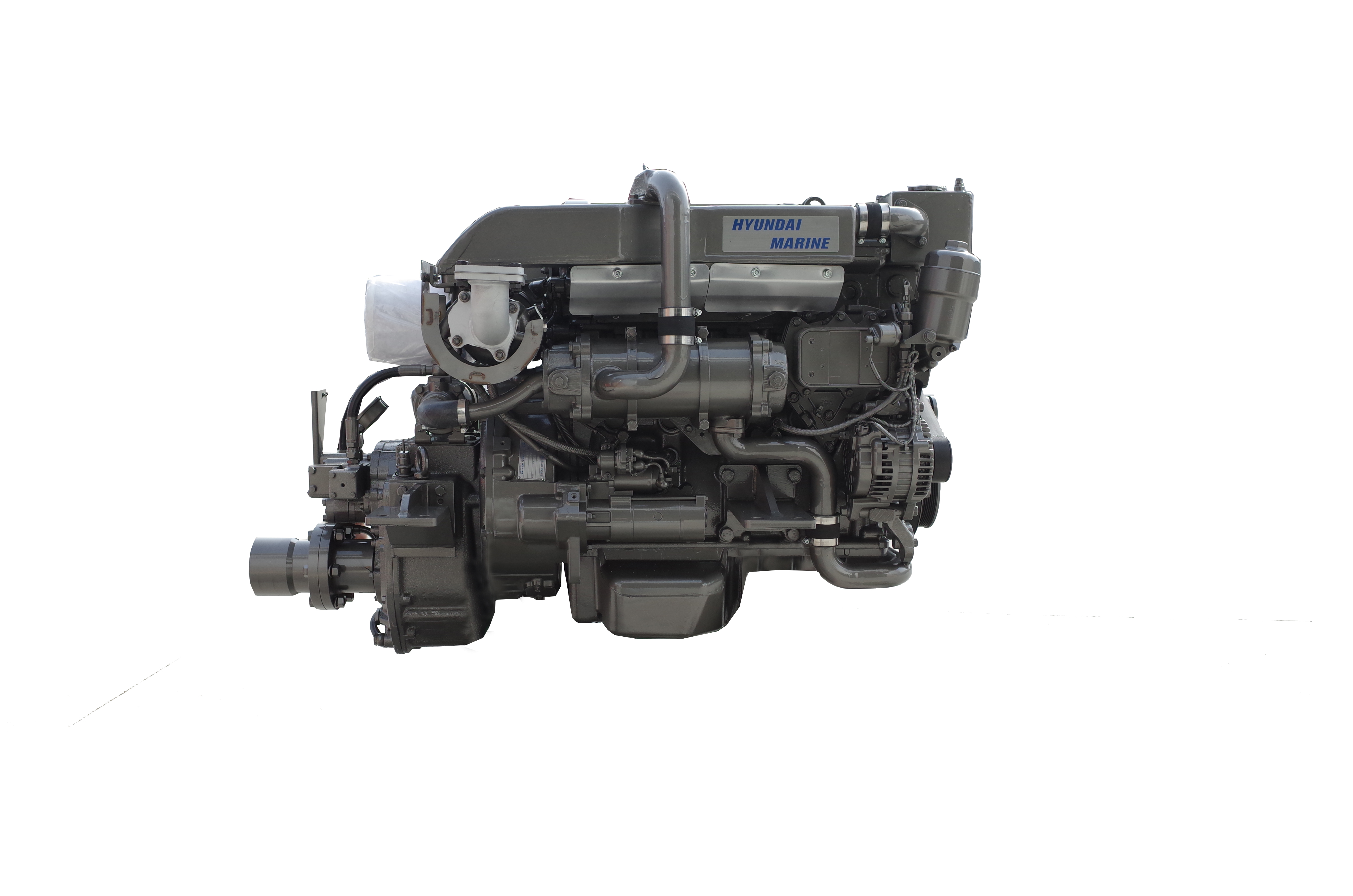

Small ship engine
M4DE34TI
M4DE34TI
200PS / 2500RPM
200
PS
2500
RPM
L4
Cylinders
3,933
cc
Advantages
- High efficiency marine engine
- Economic fuel consumption
- Long durability & high reliability
- Easy and low cost maintenance
- Installed high performance hydraulic clutch
- Minimized noise and vibration
Technology & Certification
- Approved the Certificate by KST
PRODUCT SPECIFICATION
Product Specification
| Model | M4DE34TI |
|---|---|
| Engine type | 4cycle, vertical, fresh water cooled diesel engine |
| Out put(PS/RPM) | 200 / 2500 |
| No.of.cyl. | L4 |
| Bore×stroke(mm) | 103x118 |
| Volume(cc) | 3,933 |
| Aspiration | TCI |
| Aspiration | DI |
| Compression ratio | 17 |
| Fuel | Diesel light oil, cetane Number 45 or Higher |
| Lub. Oil | API |
| Cooling system | Heat exchanger type forced circulation by centrifugal pump |
| Starting system | DC 24V Electric Starting |
| Fuel inj.pump | EUI type |
| Dry weight(kg) | 500 |
| Ratio(STD) | 1.61/2.06/2.45/2.82/3.12/3.46 |
