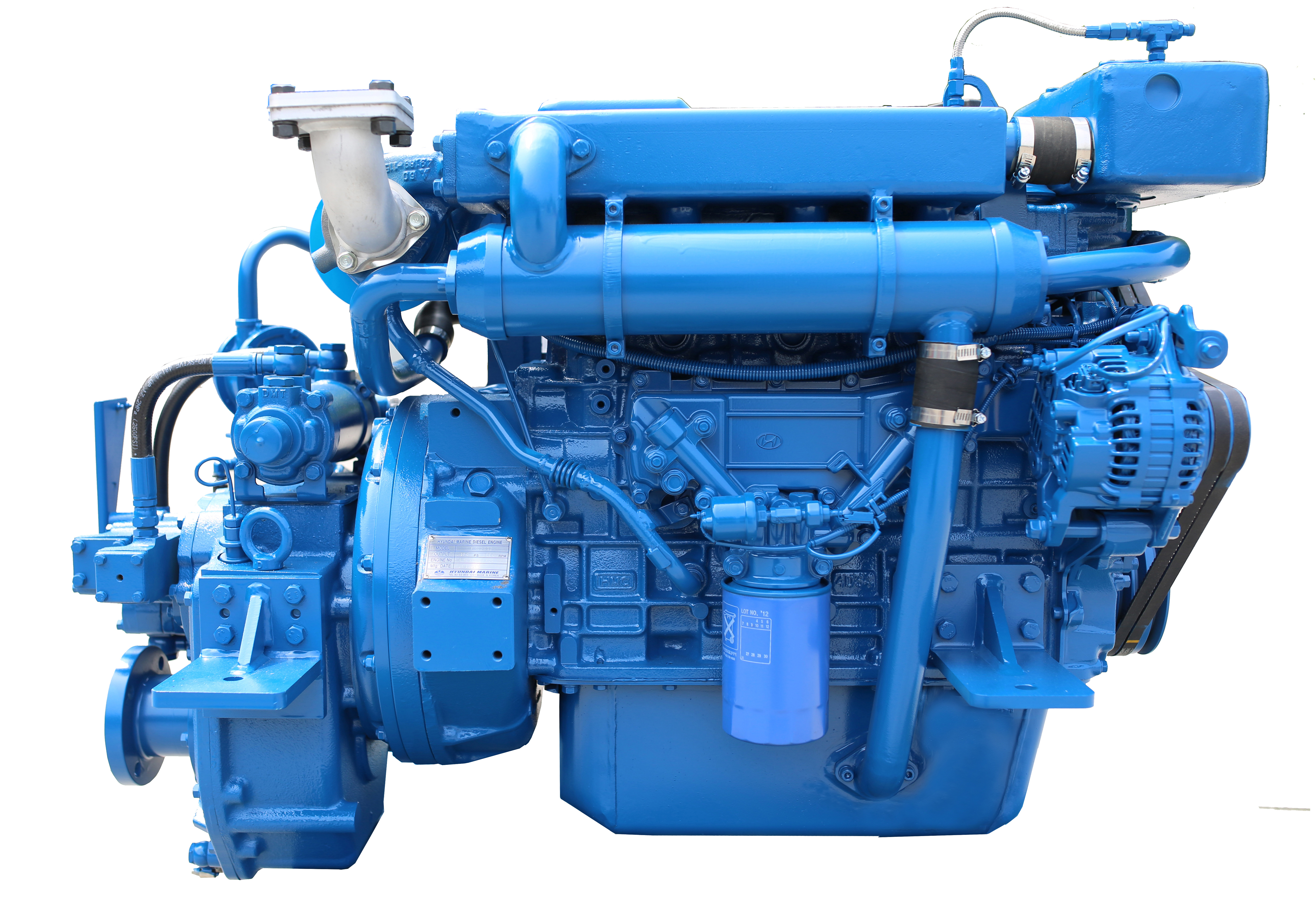

Small ship engine
M4D34TI
M4D34TI
150PS / 2800RPM
150
PS
2800
RPM
L4
Cylinders
3,907
cc
Advantages
- High efficiency marine engine
- Economic fuel consumption
- Long durability & high reliability
- Easy and low cost maintenance
- Installed high performance hydraulic clutch
- Minimized noise and vibration
Technology & Certification
- Approved the Certificate by KST
PRODUCT SPECIFICATION
Product Specification
| Model | M4D34TI |
|---|---|
| Engine type | 4cycle, vertical, fresh water cooled diesel engine |
| Out put(PS/RPM) | 150 / 2800 |
| No.of.cyl. | L4 |
| Bore×stroke(mm) | 100×105 |
| Volume(cc) | 3,907 |
| Aspiration | TCI |
| Aspiration | DI |
| Compression ratio | 16.5 |
| Fuel | Diesel light oil, cetane Number 45 or Higher |
| Lub. Oil | API CD CLASS |
| Cooling system | Heat exchanger type forced circulation by centrifugal pump |
| Starting system | DC 24V Electric Starting |
| Fuel inj.pump | Bosch type |
| Dry weight(kg) | 482 |
| Ratio(STD) | 1.61/2.06/2.45/2.82/3.12/3.46 |
