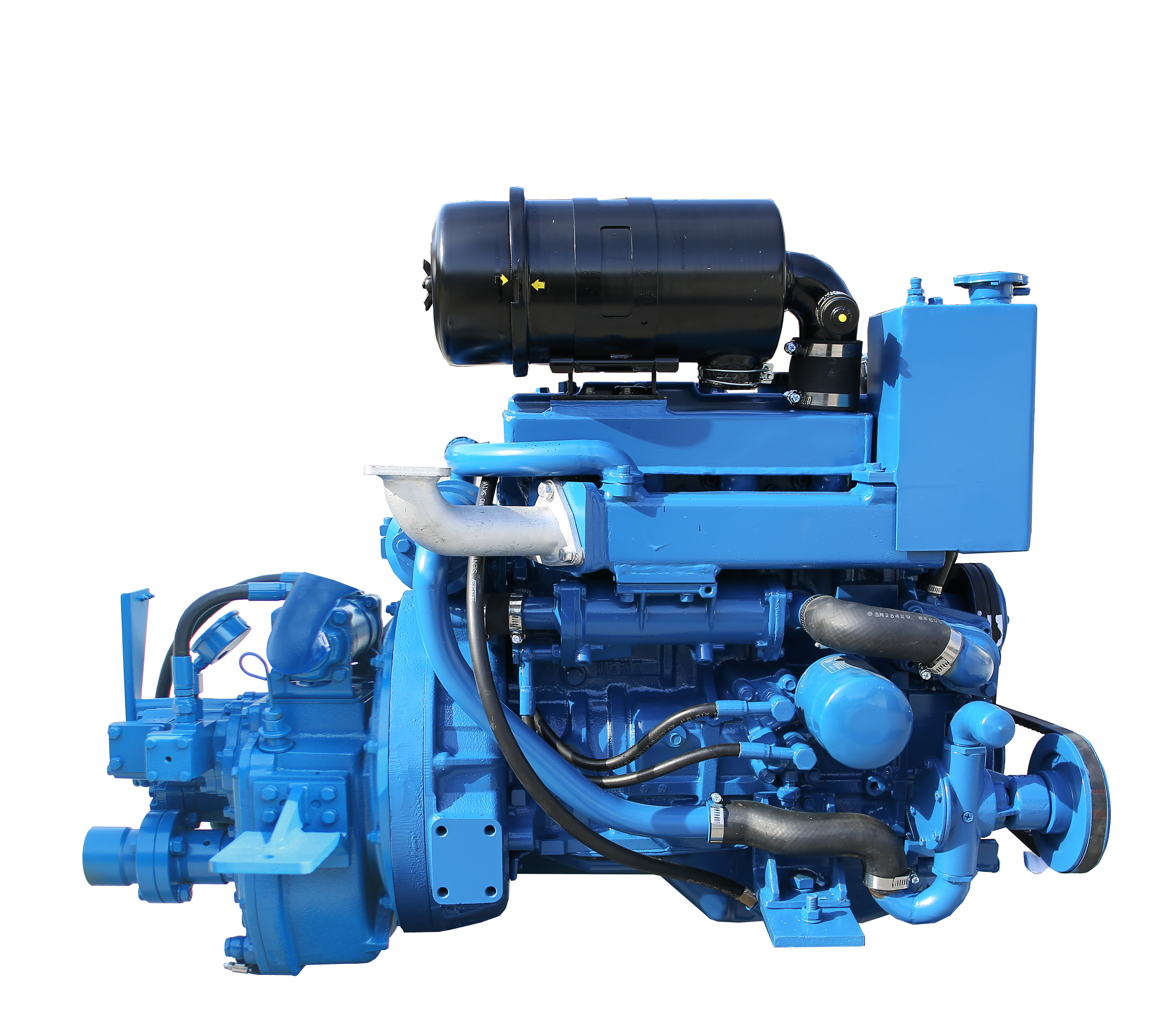

Small ship engine
M4D56
M4D56
60PS / 3600RPM
60
PS
3600
RPM
4
Cylinders
2,607
cc
Advantages
- High efficiency marine engine
- Economic fuel consumption
- Long durability & high reliability
- Easy and low cost maintenance
- Installed high performance hydraulic clutch
- Minimized noise and vibration
Technology & Certification
- Approved the Certificate by KST
PRODUCT SPECIFICATION
Product Specification
| Model | M4D56 |
|---|---|
| Engine type | 4cycle, vertical, fresh water cooled diesel engine |
| Out put(PS/RPM) | 60 / 3600 |
| No.of.cyl. | 4 |
| Bore×stroke(mm) | 91.1×100 |
| Volume(cc) | 2,607 |
| Aspiration | NA |
| Aspiration | IDI |
| Compression ratio | 22 |
| Fuel | Diesel light oil, cetane Number 45 or Higher |
| Lub. Oil | API CC CLASS |
| Cooling system | Heat exchanger type forced circulation by centrifugal pump |
| Starting system | DC 12V |
| Fuel inj.pump | Bosch type |
| Dry weight(kg) | 190 |
| Ratio(STD) | 1.64/2.07/ 2.52/ 2.96/ 3.32 |
