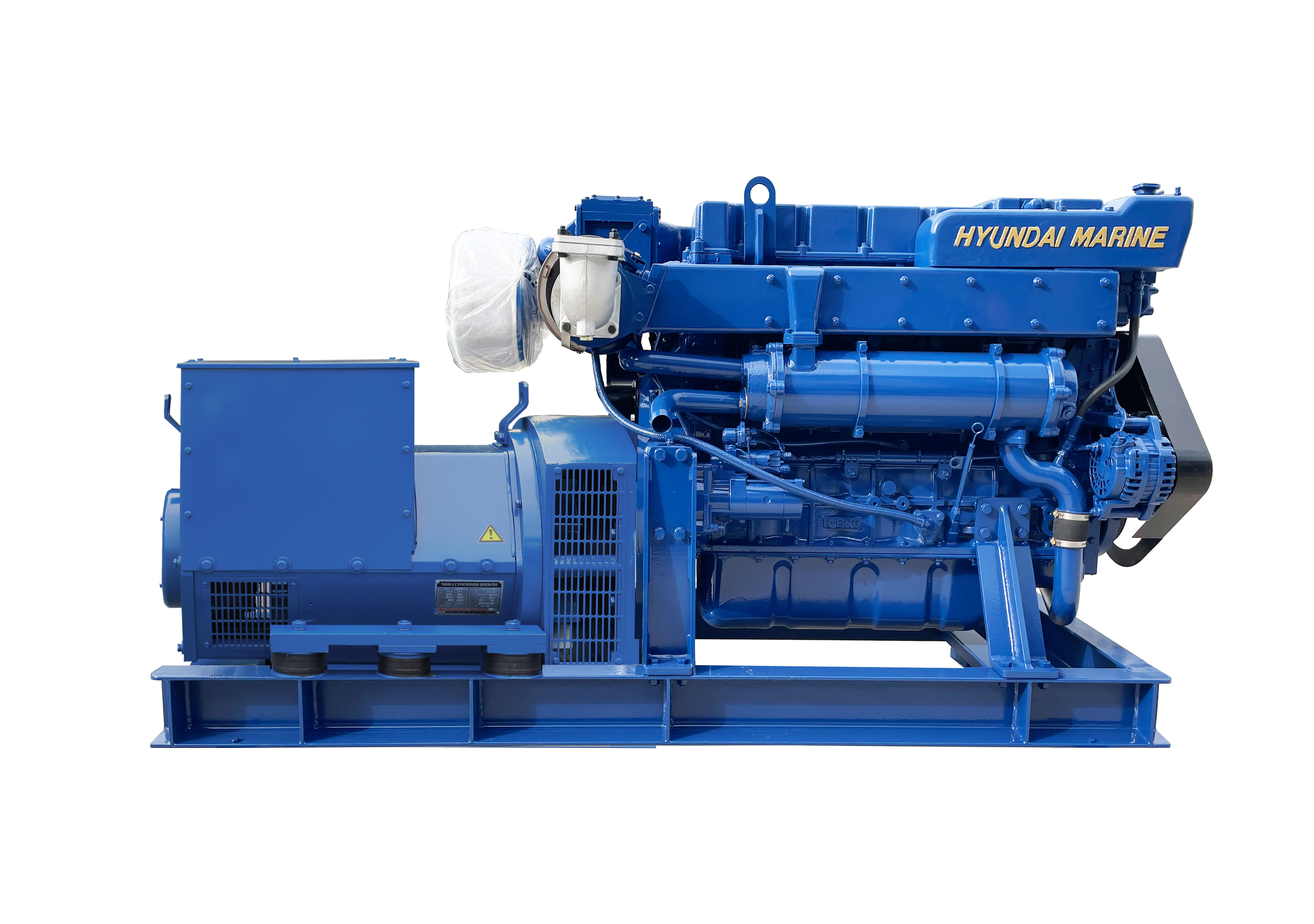

Generator
HMG-260H(R)
HMG-260H(R)
320KW / 1800RPM
60
HZ
1800
RPM
INLINE,6CYL
Cylinders
12,344
cc
Advantages
- By installing a various kinds of alternator
- Improved the performance of generator set
- supplying of right time & products according to purchaser`s requirements
Technology & Certification
- Approved the Certificate by KST
PRODUCT SPECIFICATION
Product Specification
| Frequency & RPM | 60HZ/1800RPM | 50HZ /1500RPM |
|---|---|---|
| Stand-by(kw) | 350 | 295 |
| Prime(kw) | 320 | 260 |
| Cylinder arrangement | INLINE,6CYL | INLINE,6CYL |
| Bore x Stroke | 130X155 | 130X155 |
| Displacement | 12,344 | 12,344 |
| Starting system | Starting electric motor by battery | Starting electric motor by battery |
| Governor type | ECU Type | ECU Type |
| Pole-phase&wire | 4-3/4 | 4-3/4 |
| Power factor | 0.8 | 0.8 |
| Insulation class | H class | H class |
| Type | Brushless self-excitation system | Brushless self-excitation system |
