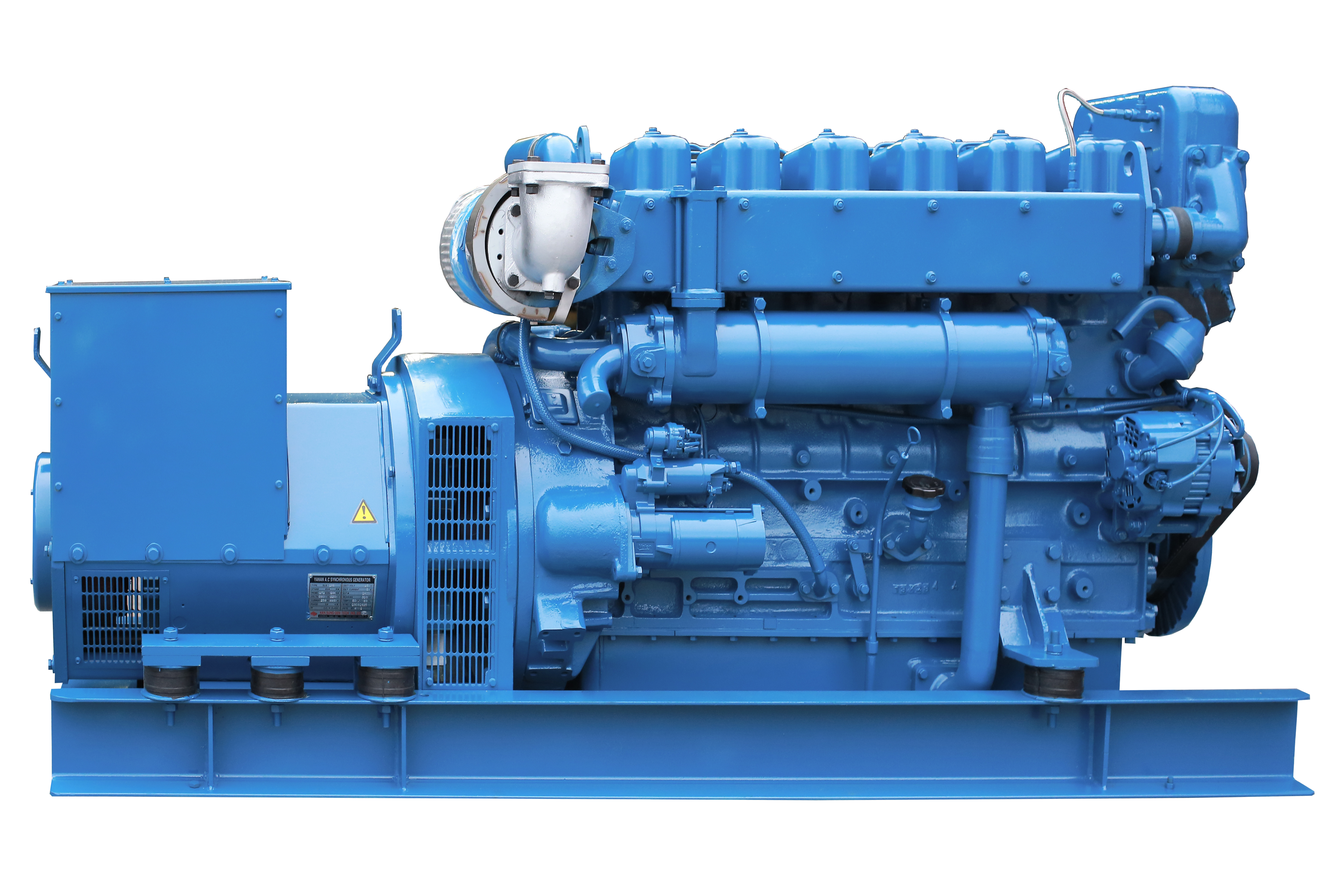

Generator
HMG-180H(R)
HMG-180H(R)
170KW / 1,800RPM
60
HZ
1,800
RPM
INLINE,6CYL
Cylinders
11,149
cc
Advantages
- By installing a various kinds of alternator
- Improved the performance of generator set
- supplying of right time & products according to purchaser`s requirements
Technology & Certification
- Approved the Certificate by KST
PRODUCT SPECIFICATION
Product Specification
| Frequency & RPM | 60HZ/1,800RPM | 50HZ /1,500RPM |
|---|---|---|
| Stand-by(kw) | 180 | 170 |
| Prime(kw) | 170 | 160 |
| Cylinder arrangement | INLINE,6CYL | INLINE,6CYL |
| Bore x Stroke | 130X140 | 130X140 |
| Displacement | 11,149 | 11,149 |
| Starting system | Starting electric motor by battery | Starting electric motor by battery |
| Governor type | Mechanical centrifucal type | Mechanical centrifucal type |
| Pole-phase&wire | 4-3/4 | 4-3/4 |
| Power factor | 0.8 | 0.8 |
| Insulation class | H class | H class |
| Type | Brushless self-excitation system | Brushless self-excitation system |
