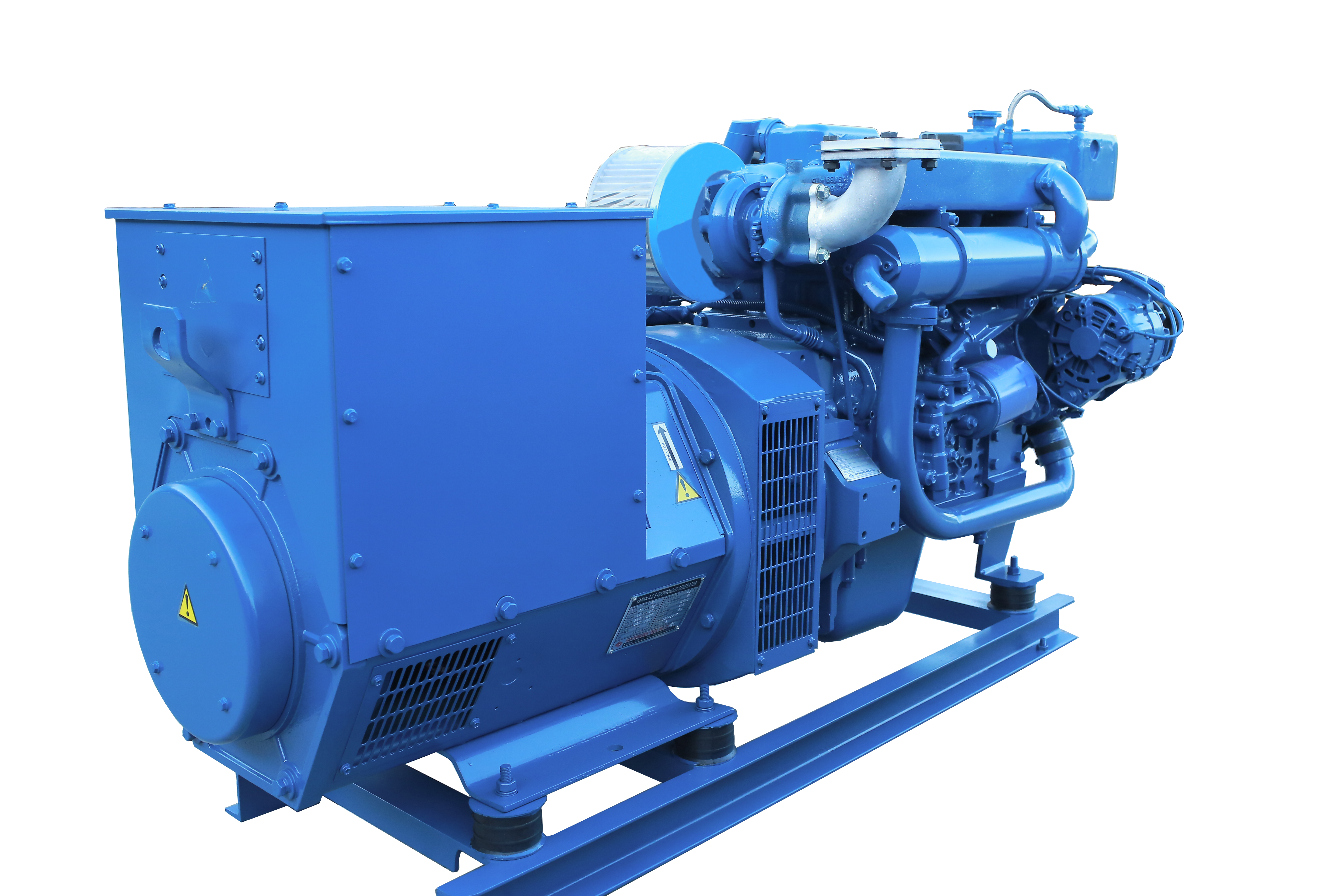

Generator
HMG-60H(R)
HMG-60H(R)
55KW / 1,800RPM
60
HZ
1,800
RPM
INLINE,4CYL
Cylinders
3,907
cc
Advantages
- By installing a various kinds of alternator
- Improved the performance of generator set
- supplying of right time & products according to purchaser`s requirements
Technology & Certification
- Approved the Certificate by KST
PRODUCT SPECIFICATION
Product Specification
| Frequency & RPM | 60HZ/1,800RPM | 50HZ /1,500RPM |
|---|---|---|
| Stand-by(kw) | 60 | 50 |
| Prime(kw) | 55 | 45 |
| Cylinder arrangement | INLINE,4CYL | INLINE, 4CYL |
| Bore x Stroke | 104X115 | 104X115 |
| Displacement | 3,907 | 3,907 |
| Starting system | Starting electric motor by battery | Starting electric motor by battery |
| Governor type | Mechanical centrifucal type | Mechanical centrifucal type |
| Pole-phase&wire | 4-3/4 | 4-3/4 |
| Power factor | 0.8 | 0.8 |
| Insulation class | H class | H class |
| Type | Brushless self-excitation system | Brushless self-excitation system |
